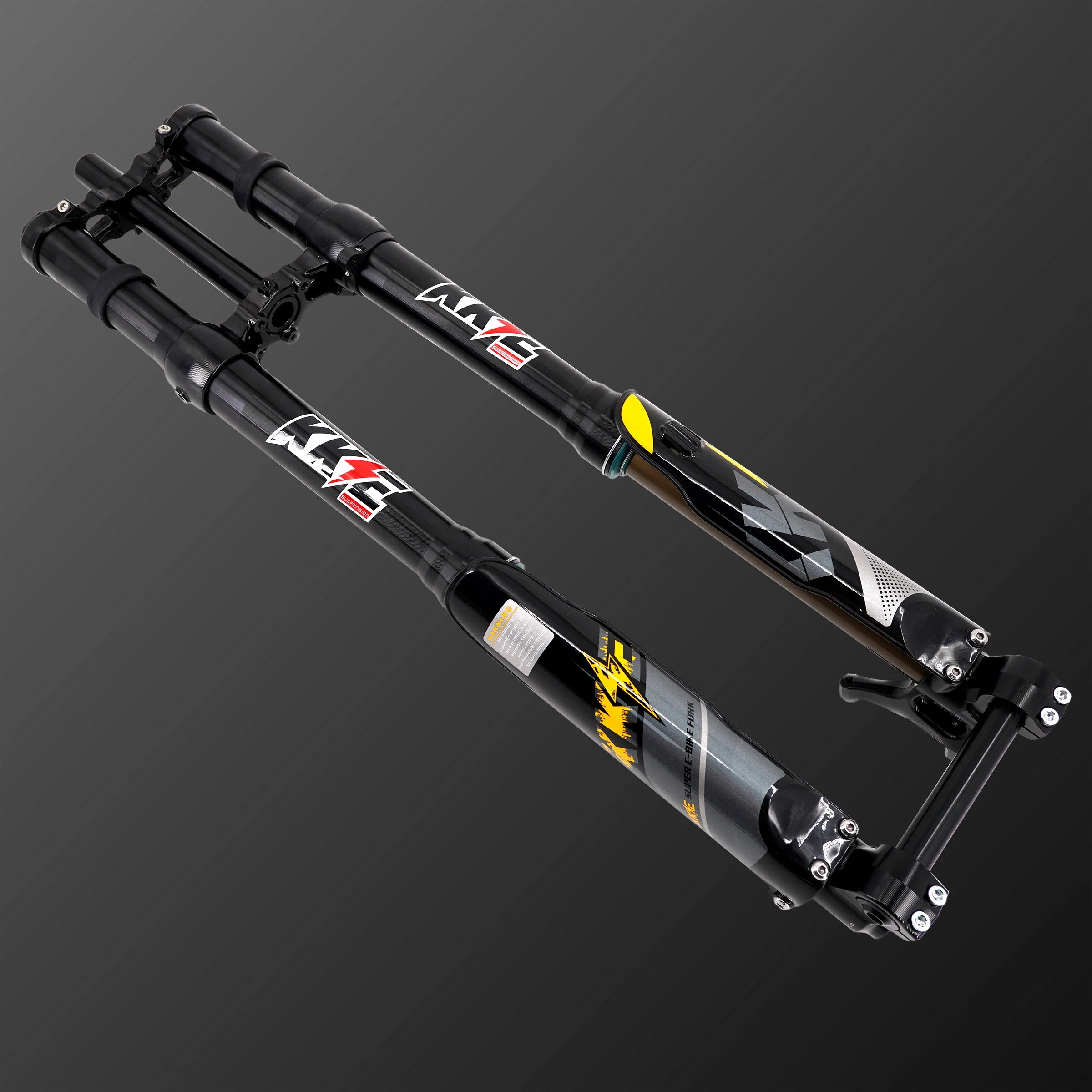

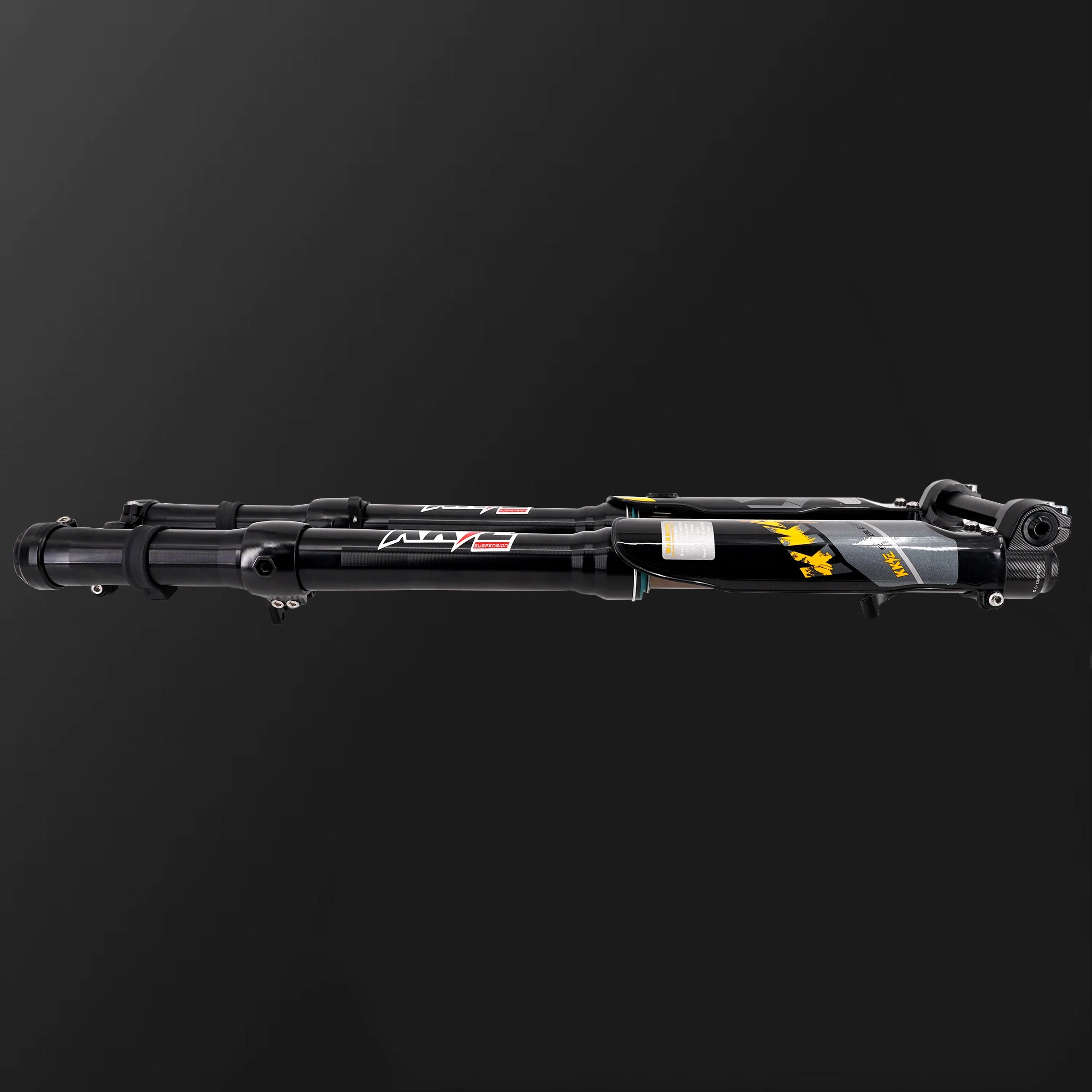

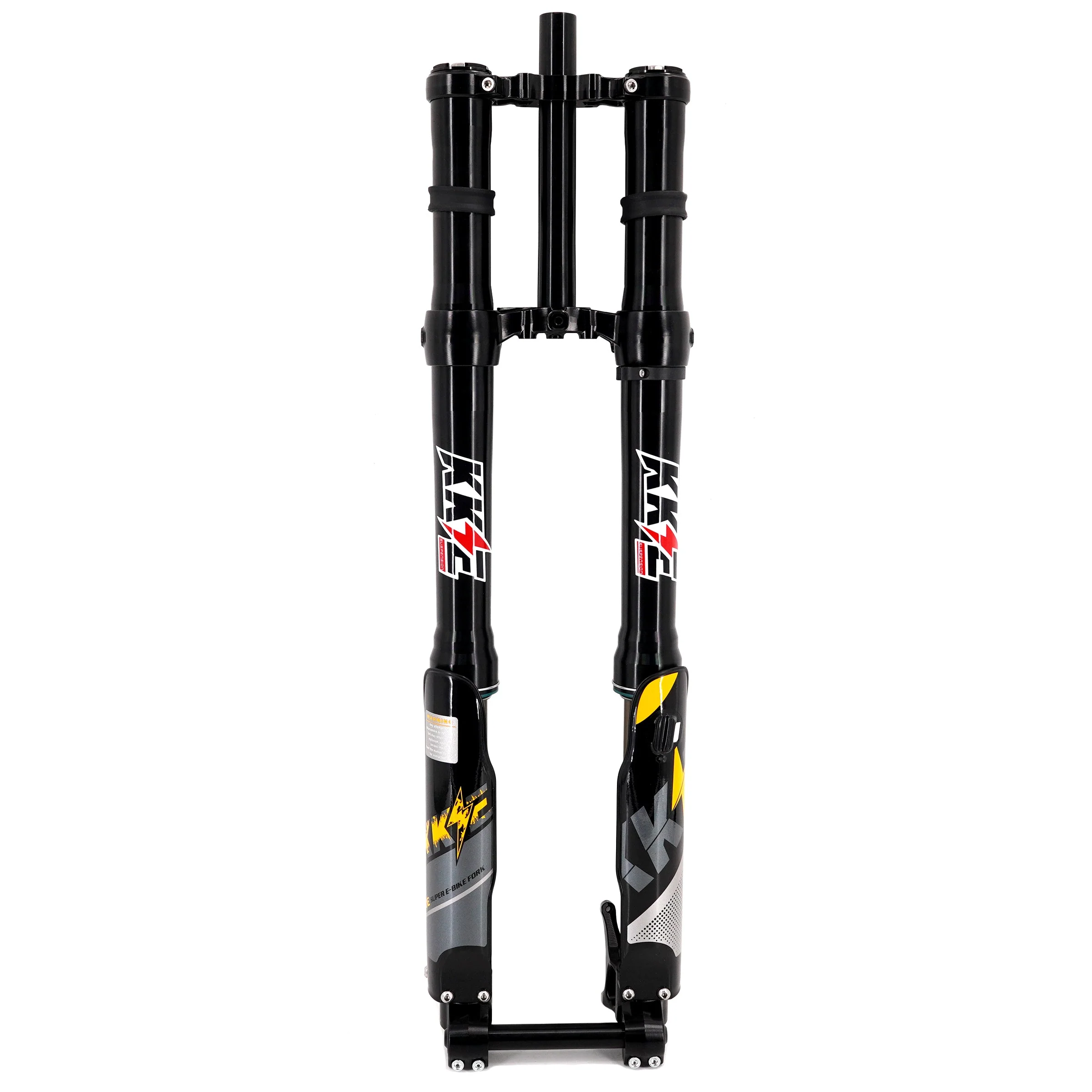

KKE 37MM Front Fork Suspension

DROP SHIPPED FROM KKE NOT AVAILABLE LOCALLY

KKE Performance 37mm Front Fork For Surron, E Ride Pro SS, and Talaria Sting MX3 / R MX4

Our take on this fork: it’s massively built-up/stronger vs the OEM Surron fork, taller than most forks at 210mm of travel, and has SKF seals out of the box. This is a tremendous fork for the money.

With springs in both legs, this fork benefits from KKE's Ultra Bee Performance fork design (which is fantastic).

If you are NOT using a stem lock please be aware that a star nut is not included please be sure to either add one to your cart or purchase a w9 stem lock to your order.

Specifications:

• Weight: 5.3kg (include triple clamp set)
• Travel: 210mm
• Stanchion: 37mm Aluminum

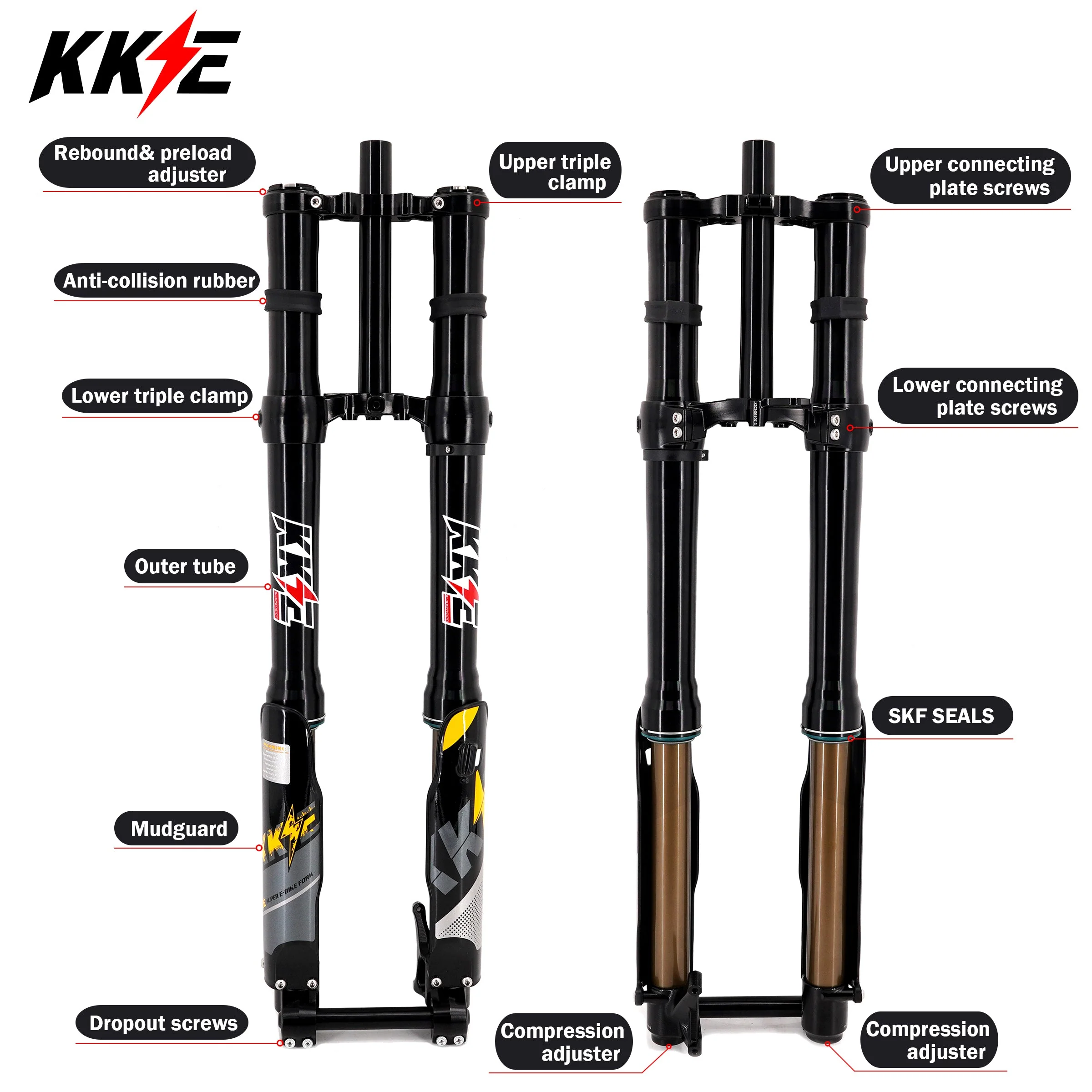

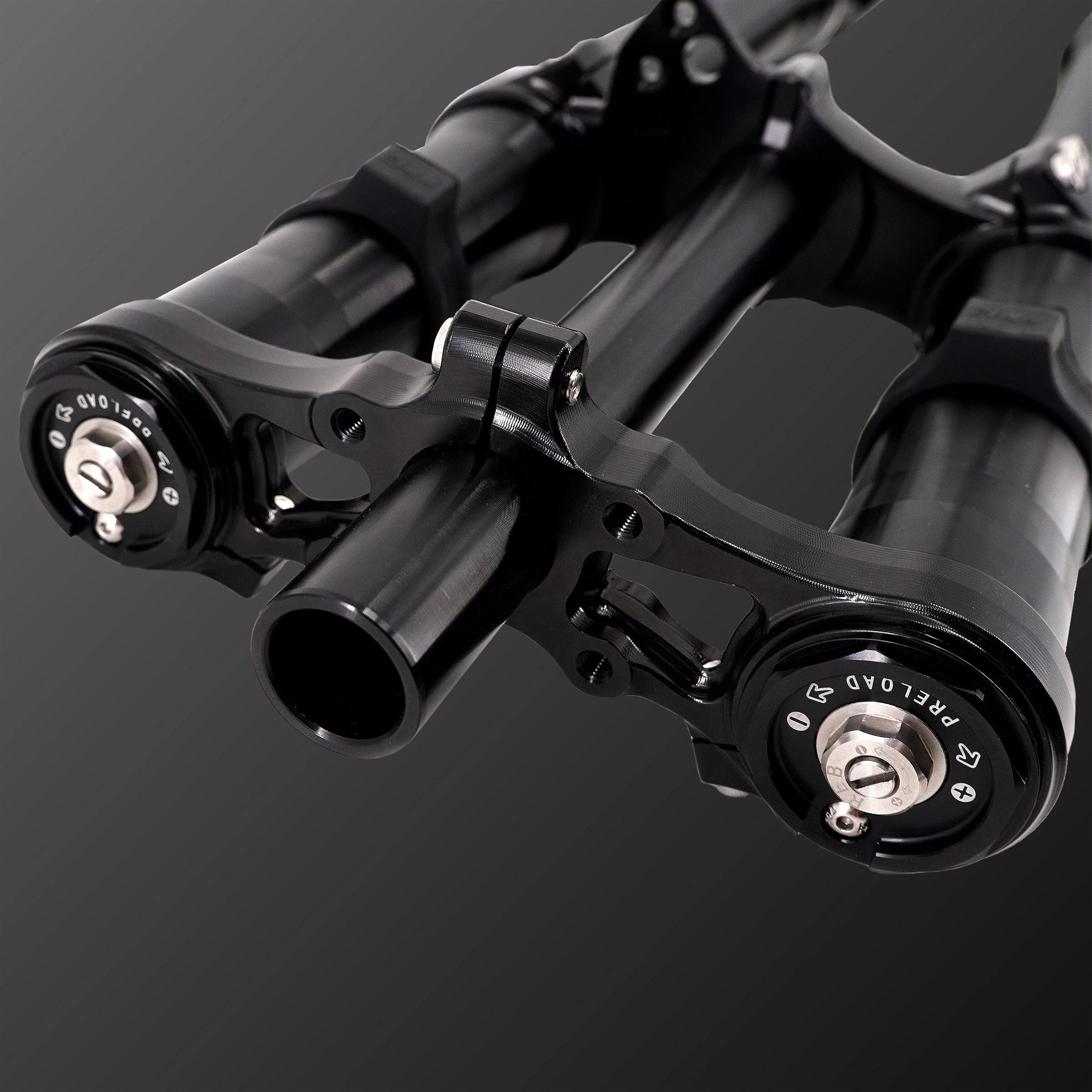

• Adjustments: Compression, Rebound, Preload
• Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
• Coil Spring - 23Ibs in both fork legs (46lbs total)

• Lightweight designed fork leg with CNC-machined finishing, less unsprung mass, better handing

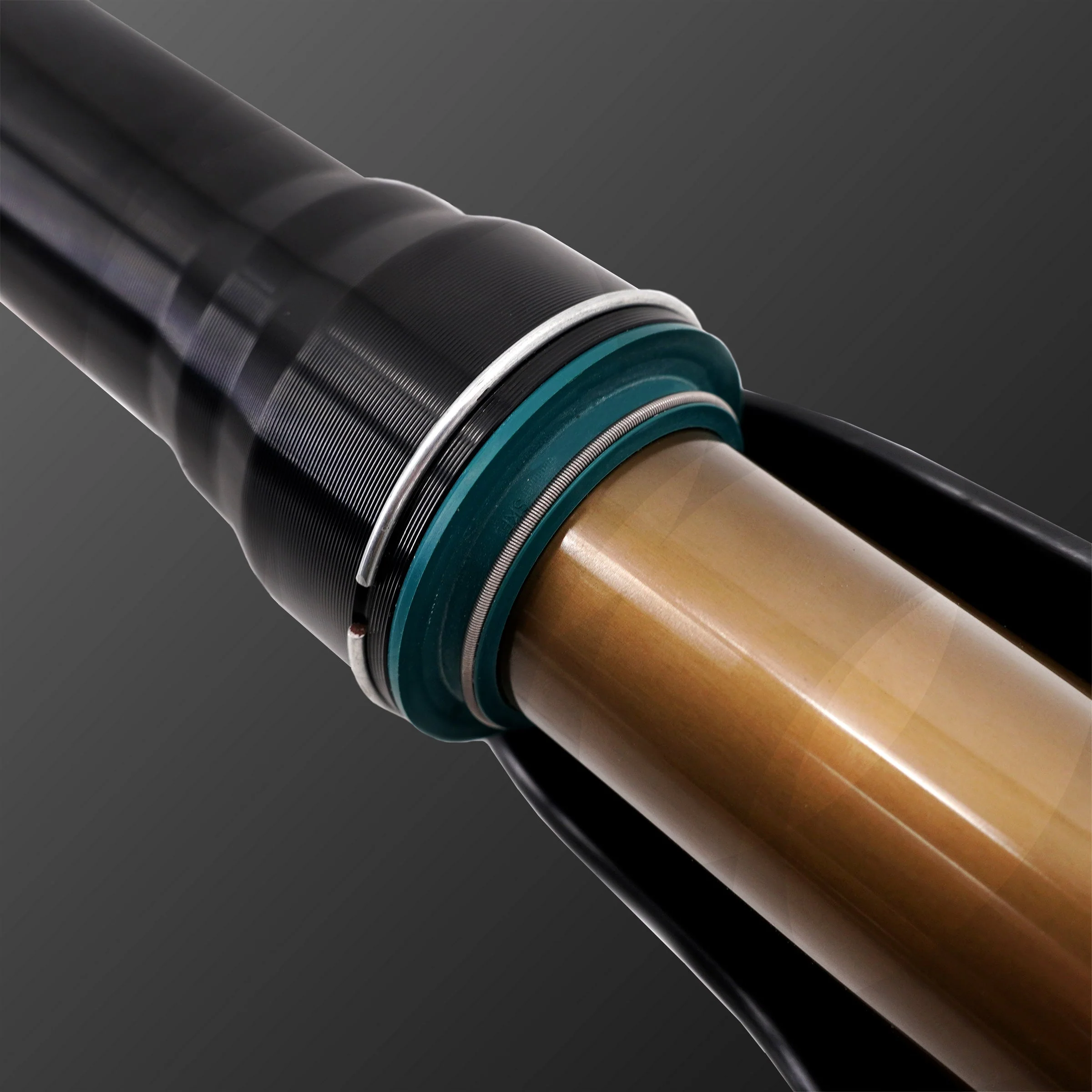

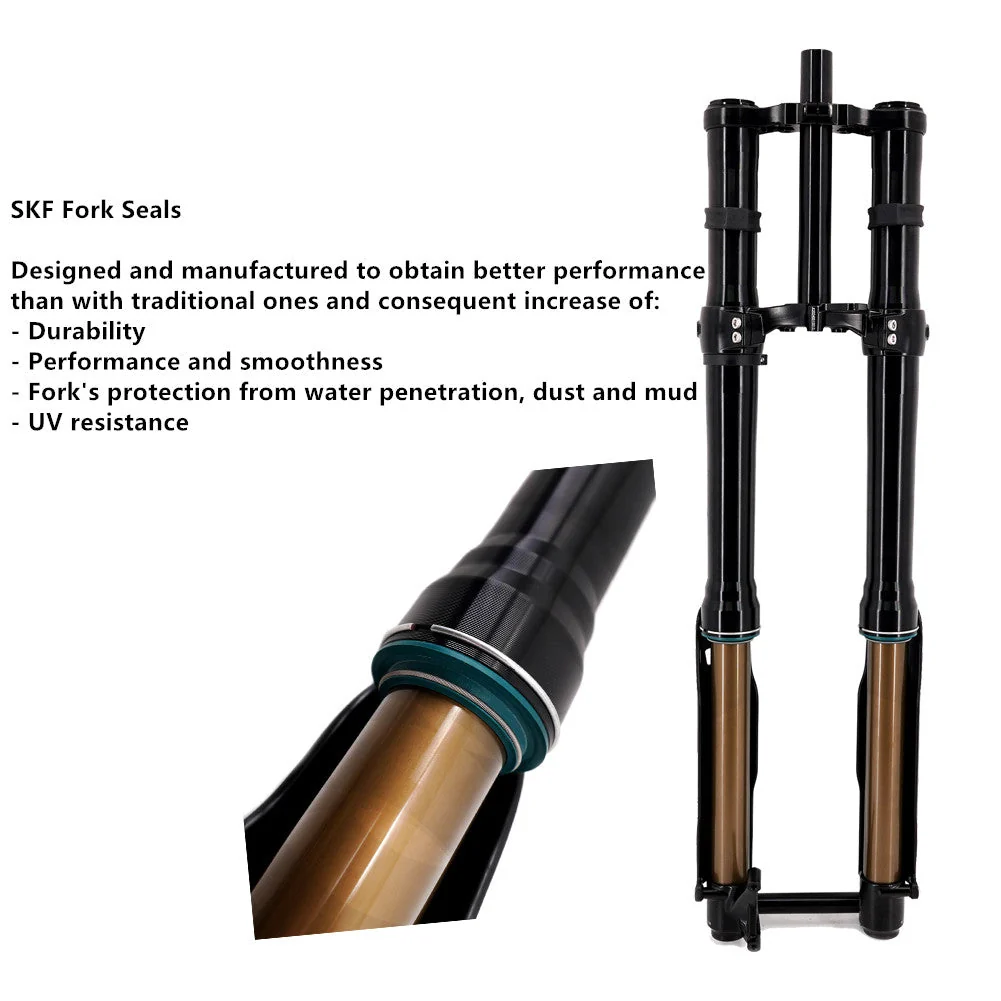

• SKF oil seals and dust seals for less friction smooth feel
• Alloy fork tube with DU-bushing guiding design, better stiffness and torsional rigidity
• 7000 alloy inner tube with hard-anodizing treatment surface
• Race-proven damping system with mid-valve stack and hydro stop function offering more progressive damping at the medium travel and more support at the end
• Every clicker of the compression/rebound / adjustment will find its way in different scenario
• CNC triple clamp ,less weight ,more stiffness ,better looking

Fits 175pounds~220 pounds Riders Weight

Fitment:

• Talaria Sting MX3 / MX4 / R
• E-Ride Pro-SS 2024
• Surron Light Bee

Specifications:

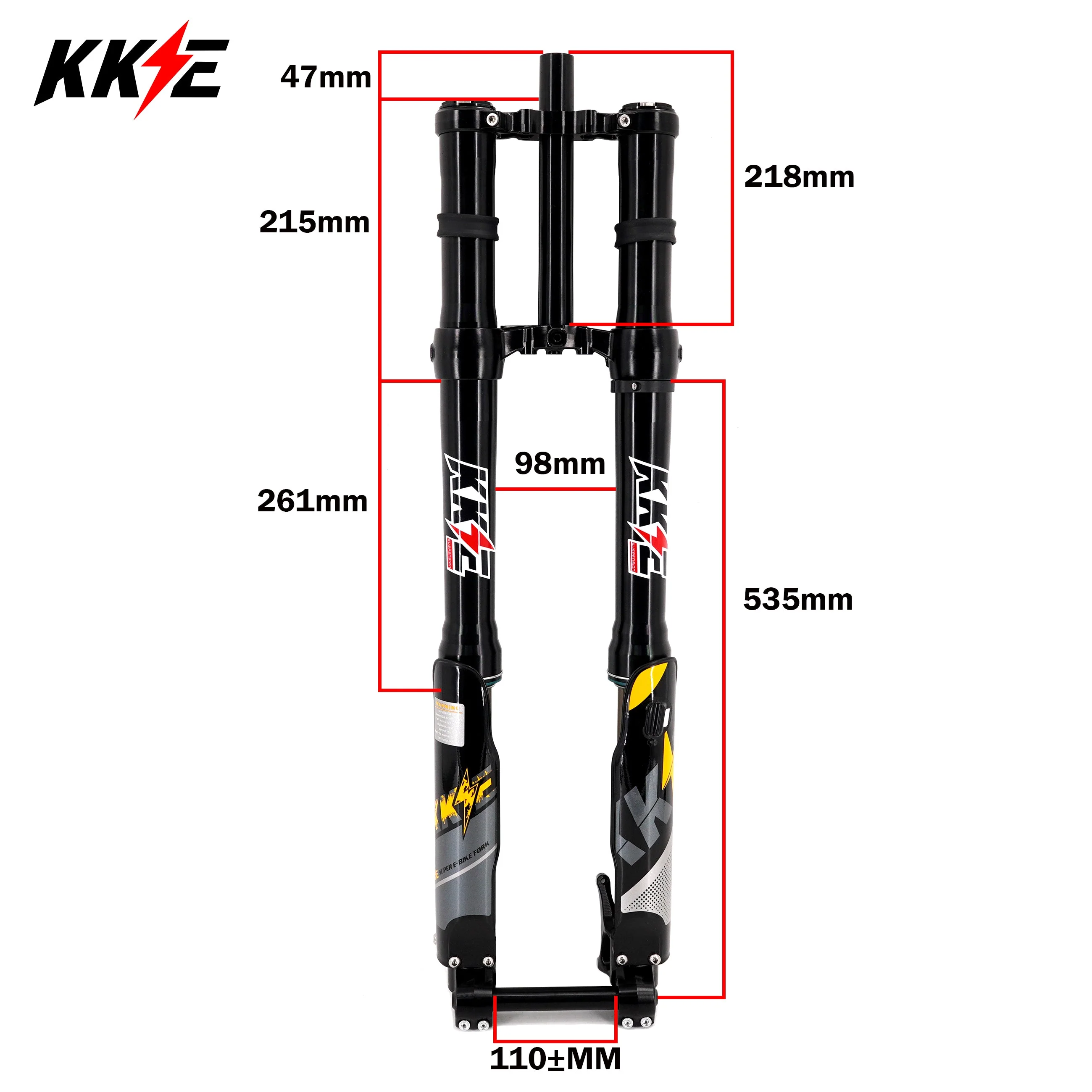

• Length （Axle to Crown): 750mm
• Travel: 210mm
• Fork Offset: 32mm

• For Rider Weight: 23lbs Spring Fit 175pounds~220pounds riders weight
• Architecture: Upside down fork
• Stanchions: 37mm, 7000 aluminum hard anodized coating
• Outer tubes: 6069 aluminum, anodized black

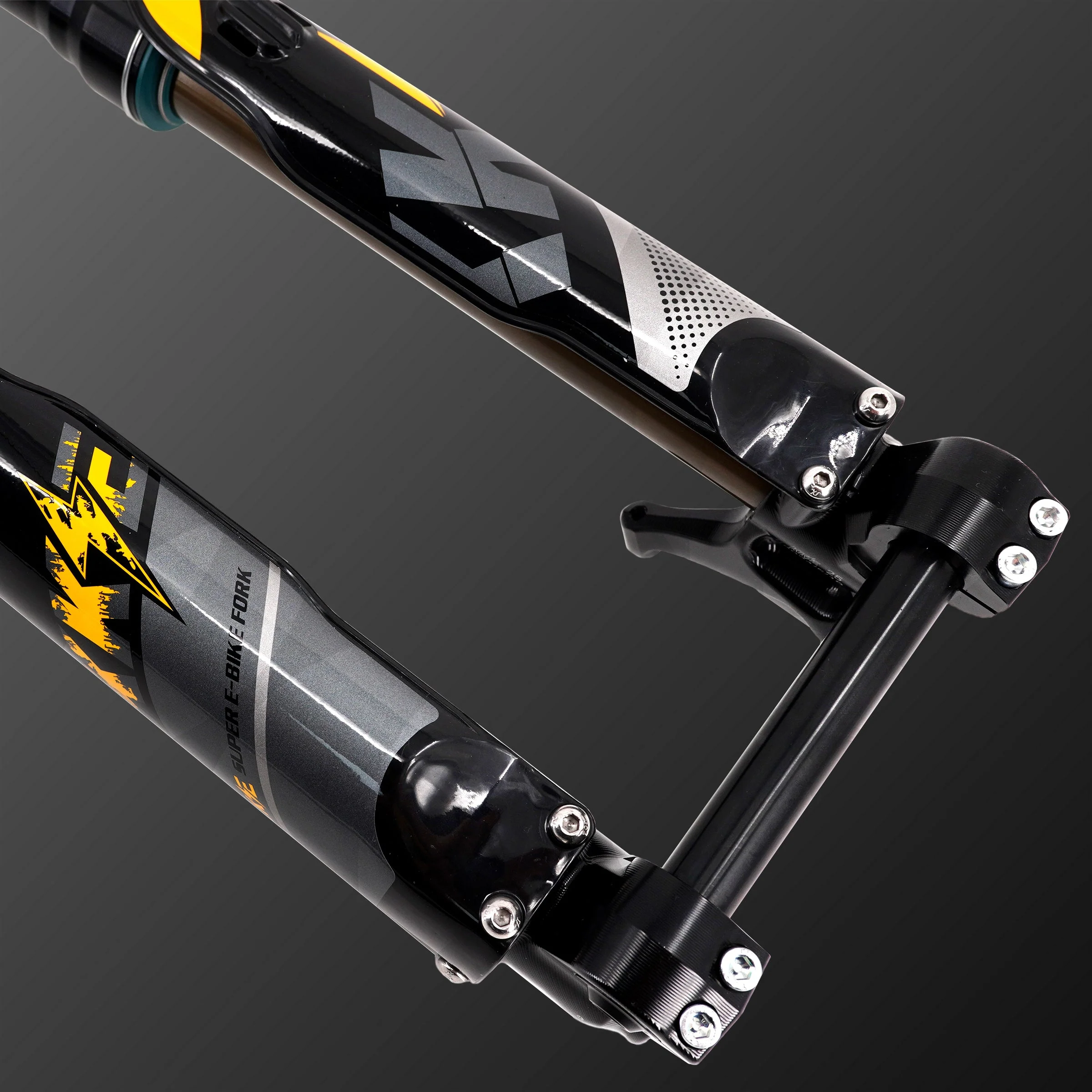

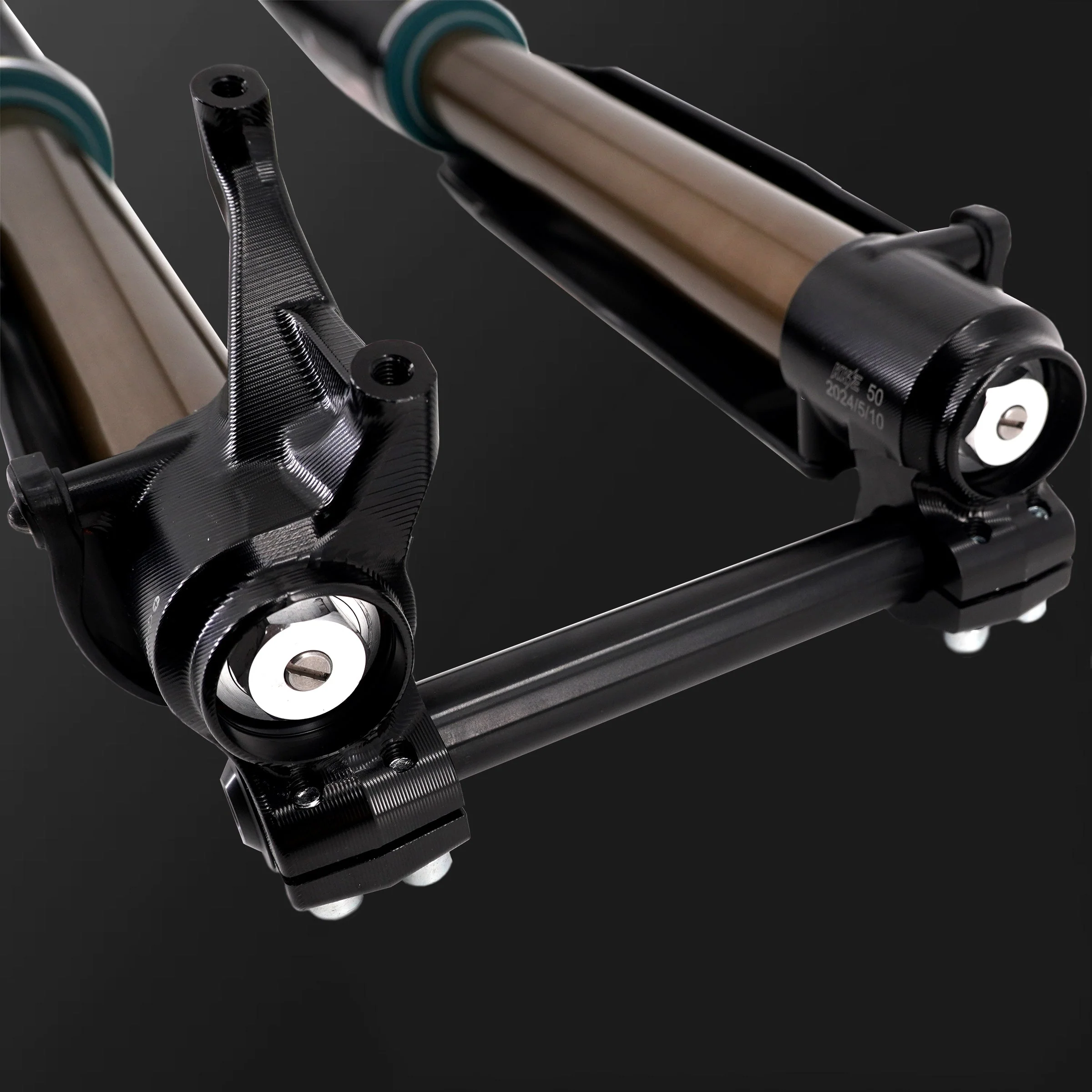

• Dropouts: 6061 aluminum, anodized black
• Triple clamps: 6061-T6 aluminum, CNC-machined finishing
• Steer tube: 28.6mm,6061-T6 aluminum
• Damping: Symmetrical, adjustable open cartridge
• Damper bodies: 7050-T6 aluminum, anodized coating

• Weight: 5.3kg(include triple clamp set)
• Adjustments: Compression, Rebound,Preload
• Axle: 20mm• Axle to Crown: 750mm @ 210mm of travel
• Seals: SKF
• Guards: PP
• Spring: Coil



Recommendation for Riders:

• KKE Front Fork assembly with 23Ibs Spring Fit 175pounds~220 pounds Riders Weight
• Note: If you have any other request or over weight, please feel free to contact us for more details



Fitment:

• Fit Talaria Sting MX3 / MX4 / R
• Fit E-Ride Pro-SS 2024
• Fit Surron Light Bee



Package Included:

• Assembled Front Fork 1set
• Note: We matched left mudguard & right mudguard, Not installed!



Color:

• Black


Placement on Vehicle:

• Front Fork

Maintenance:

SUGGESTED SERVICE INTERVALS FOR DORADO
(Extreme riding and harsh conditions may require more frequent service)
